Rotary Mills

Mills

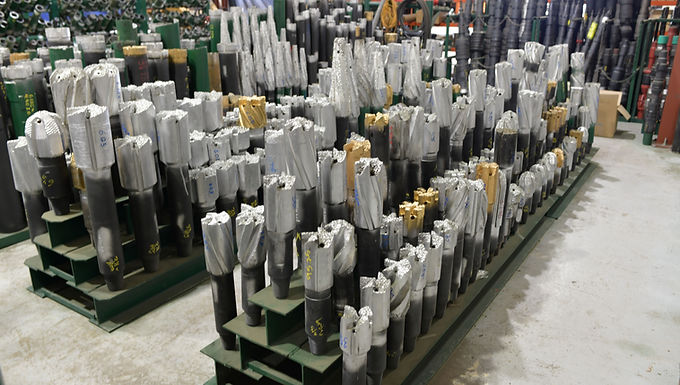

Trilogy supplies rotary mills for removing bridge plugs, packers, cement, scale and other downhole obstructions during fishing, workover and well cleanout operations.

Available styles include econo, junk, concave and convex mills, with regular carbide, specialty matrix and inserted cutting options. The mill’s size, profile and cutting material are selected to suit the job, wellbore clearance and tool string. Custom sizes and configurations are also available.

Tapered mills and string mills are also available.

Sizes:

  • Thru tubing application w/AM,AW,BW,4N connection rotary mill

  • 114.3mm application w/60.3mm REG connection rotary mill

  • 139.7mm application w/73mm REG connection rotary mill

  • 177.8mm application w/88.9mm REG connection rotary mill

  • 219.1mm application w/114.3mm connection rotary mill

  • 244.5mm application w/114.3mm connection rotary mill

  • 273.0mm application w/152.4mm connection rotary mill

  • 406.4mm application w/152.4mm connection rotary mill

  • 473.1mm application w/152.4mm connection rotary mill
